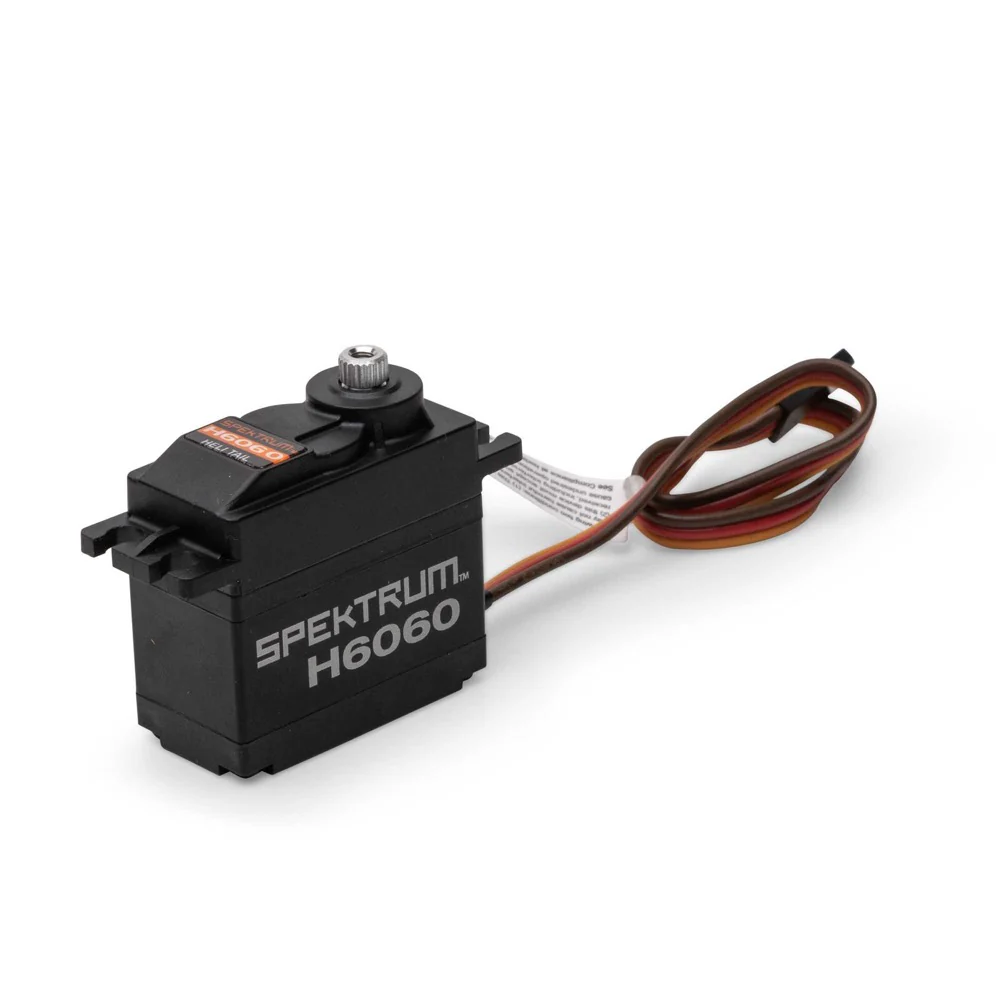

Spektrum SPMSH6060 H6060 Mid-Torque Ultra-Speed Heli Tail Servo
The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Features
- Standard size servo for 500 size Helicopter models and smaller
- 86oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
Specification
- Size Category: Standard
- Type: Digital
- Application: Heli Tail
- Torque:86 oz-in (6.2 kg-cm) @ 6.0V
- Speed: 0.056 sec/60 deg @ 6V at no load
- Length: 1.57 in (39.9 mm)
- Width: 0.78 in (19.8 mm)
- Height: 1.57 in (39.9 mm)
- Weight: 2.2 oz (62g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-Connector
- Gear Type: Metal
- Gear Material: Alloy
- Voltage: 4.8-6.0V
- Deadband: Ex: 8µs
Original: $89.11
-65%$89.11
$31.19More Images
Spektrum SPMSH6060 H6060 Mid-Torque Ultra-Speed Heli Tail Servo
The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Features
- Standard size servo for 500 size Helicopter models and smaller
- 86oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
Specification
- Size Category: Standard
- Type: Digital
- Application: Heli Tail
- Torque:86 oz-in (6.2 kg-cm) @ 6.0V
- Speed: 0.056 sec/60 deg @ 6V at no load
- Length: 1.57 in (39.9 mm)
- Width: 0.78 in (19.8 mm)
- Height: 1.57 in (39.9 mm)
- Weight: 2.2 oz (62g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-Connector
- Gear Type: Metal
- Gear Material: Alloy
- Voltage: 4.8-6.0V
- Deadband: Ex: 8µs
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Features
- Standard size servo for 500 size Helicopter models and smaller
- 86oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
Specification
- Size Category: Standard
- Type: Digital
- Application: Heli Tail
- Torque:86 oz-in (6.2 kg-cm) @ 6.0V
- Speed: 0.056 sec/60 deg @ 6V at no load
- Length: 1.57 in (39.9 mm)
- Width: 0.78 in (19.8 mm)
- Height: 1.57 in (39.9 mm)
- Weight: 2.2 oz (62g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-Connector
- Gear Type: Metal
- Gear Material: Alloy
- Voltage: 4.8-6.0V
- Deadband: Ex: 8µs
