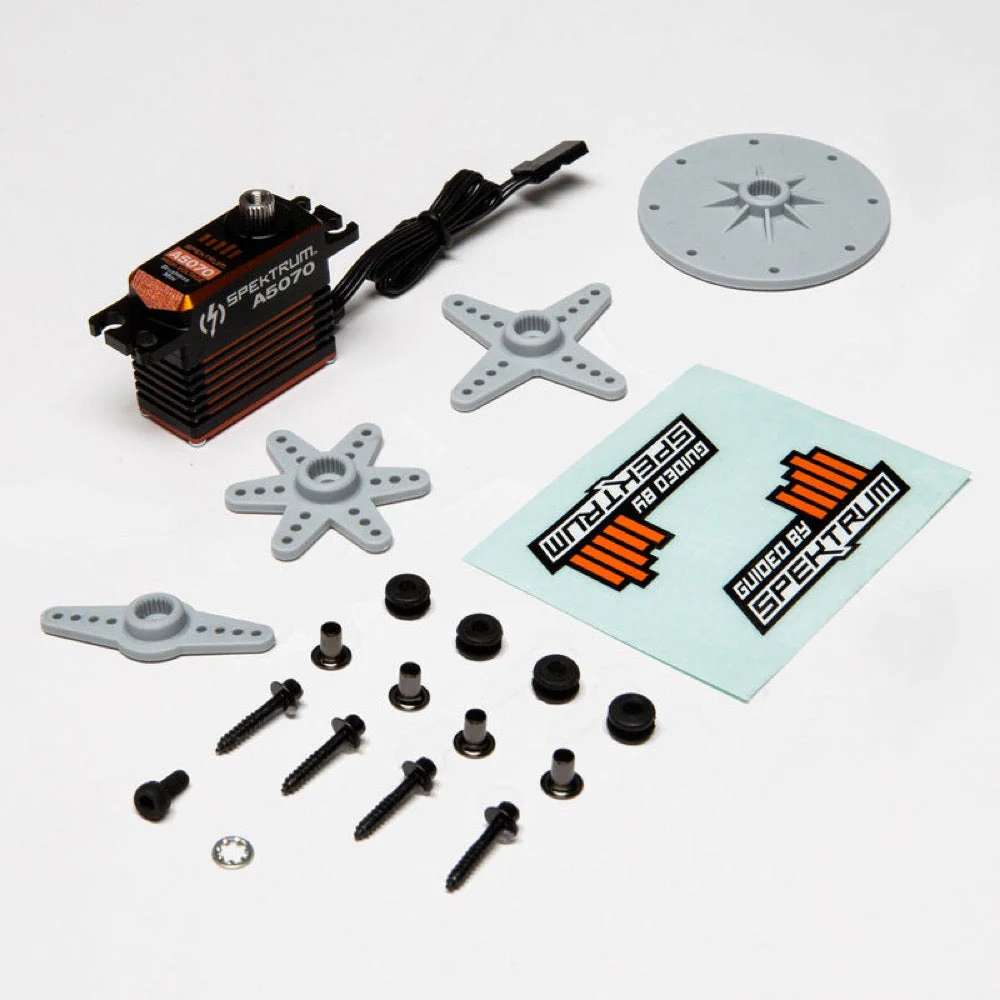

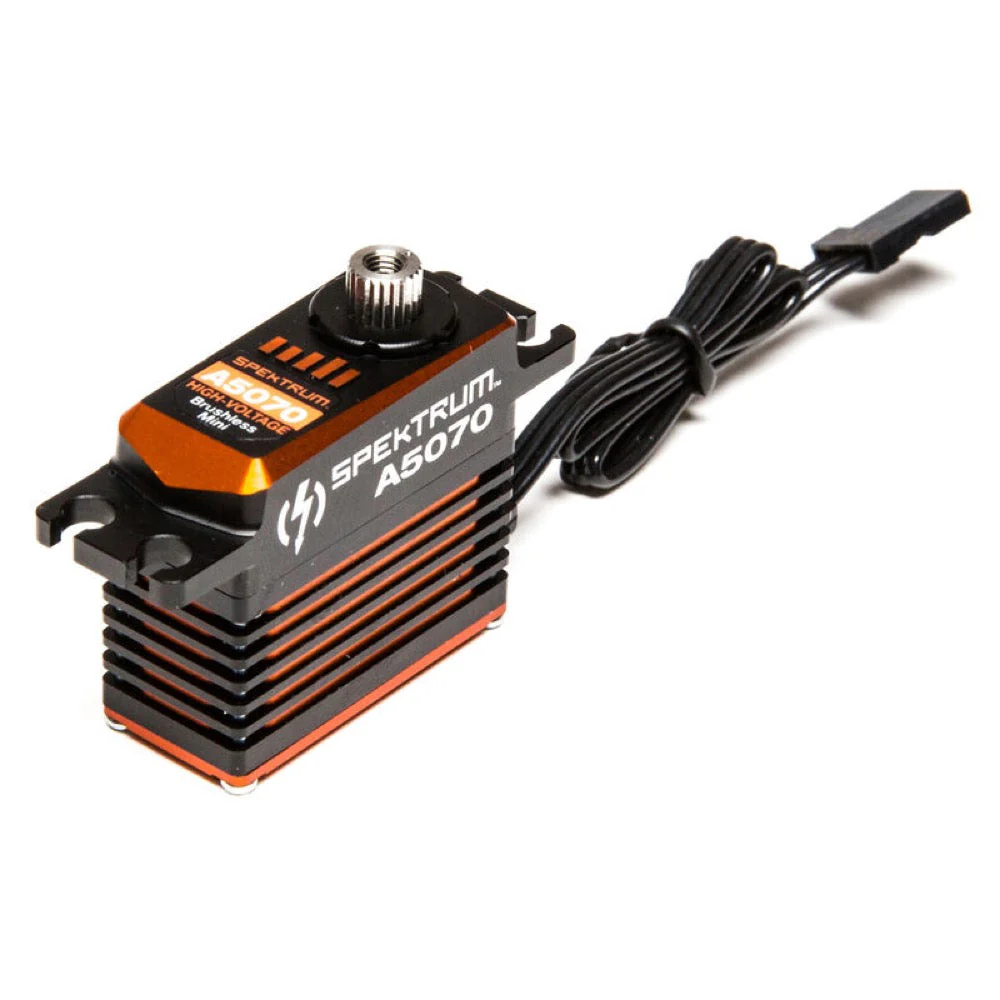

Spektrum SPMSA5070 A5070 High Torque High Speed Mini MG HV Servo

Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate. The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.

Features

• High torque both on HV and non-HV applications
• Allows BECs of adjustable BEC ESCs to be set higher to increase performance
• Acts as a heat sink for the motor and ESC
• Low deadband, high resolution, with impressive holding torque for unmatched performance
• Durable high performance finish

Specs

• Application: Airplane or Heli
• Bearing: Dual Ball Bearing
• Bushing Or Bearing: Bearing
• Connector Type: Universal
• Connector Wire Length: 11.8" (300 mm)
• Deadband: 2µs
• Gear Type: Metal
• Maximum Servo Speed: 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V
• Maximum Servo Torque: 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
• Motor Type: Brushless
• Overload Protection: Yes
• Product Application: Air
• Product Height: 1.16" (29 mm)
• Product Length: 1.32" (34 mm)
• Product Weight: 1.4 oz (40g)
• Product Width: 0.59" (15 mm)
• Programmable: No
• Rotation Range: 120 Degrees
• Servo Operating Voltage: 6.0 - 8.4V (HV)
• Servo Size Category: Mini
• Servo Type: Digital
• Spline Count: 23 - Tooth
• Water-Resistant: No
• Wire Gauge: 22 AWG
