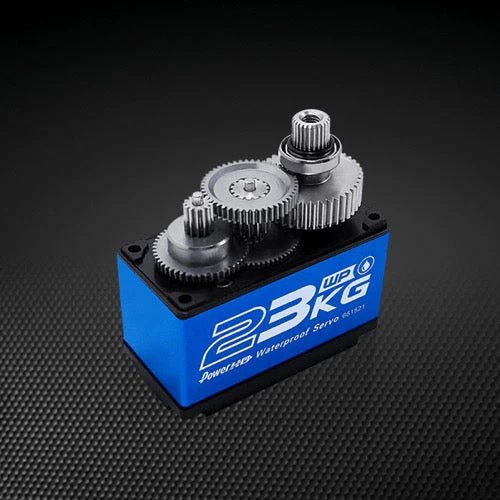

Power HD WP-23KG Standard Coreless Motor Titanium & Steel Gear Servo
The Power HD WP-23KG (HD-WP-23KG) is a waterproof, coreless, digital servo engineered for dependable performance. Delivering up to 23.0 kg-cm of torque with a 0.12s transit speed at 6.0V, it pairs a titanium/steel gear train with dual ball bearings for smooth, durable operation. Running on 4.8–6.0V DC and weighing 75 g, its compact 40.7 x 20.5 x 38.5 mm case helps it fit neatly where space is tight, making it a strong option when you need a high-torque, metal-gear 6V servo with consistent response.
Specification
- Torque
- (4.8V): 18.0 kg-cm (250.0 oz/in)
- (6.0V): 23.0 kg-cm (319.4 oz/in)
- Speed: 0.14 sec (4.8V) │ 0.12 sec (6.0V)
- Operating Voltage：4.8 ~ 6.0 DC Volts
- Weight: 75 g (2.65 oz)
- Bearing Type：Ball Bearing x 2
- Motor Type：Coreless Motor
- Gear Type：Titanium & Steel
- Operating Temperature：-10℃~60℃
- Working frequency：1520μs / 333hz
- Size：40.7 x 20.5 x 38.5 mm ( 1.60 x 0.80 x 1.49 in)
