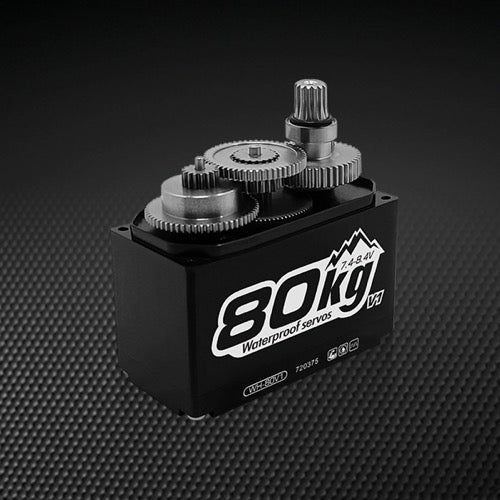

Power HD WH-80V1 HV Large Size Waterproof Servo Upgraded version of PHD-WH-80KG
The Power HD WH-80V1 is a high-voltage large scale servo engineered for serious torque and consistent response. Delivering up to 80.0 kg-cm at 8.4V with rapid 0.16–0.18 sec transit speeds, it pairs hardened steel gears with dual ball bearings for durability and smooth operation. With a 15T output spline and compact large-scale footprint, the WH-80V1 (part number HD-WH-80V1) offers dependable performance for demanding RC applications.
Specification
- Torque
- (7.4V): 75.0 kg-cm (1041.6 oz/in)
- (8.4V): 80.0 kg-cm (1111.0 oz/in)
- Speed: 0.18 sec (7.4V) │ 0.16 sec (8.4V)
- Operating Voltage: 7.4–8.4 DC Volts
- Weight: 200 g (7.05 oz)

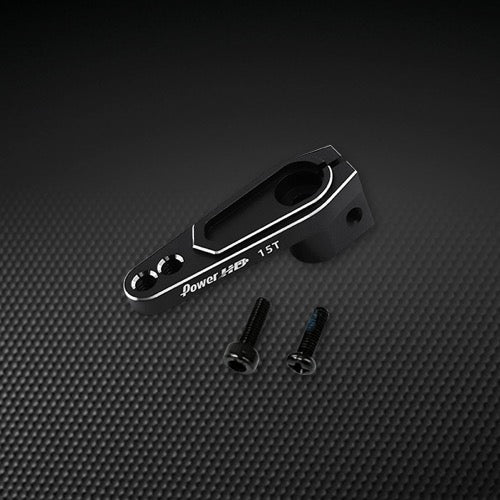

- Horn gear spline: 15T
- Bearing Type: Ball Bearing x 2
- Gear Type: Steel
- Operating Temperature: -20°C to 60°C
- Working frequency: 1520 μs / 333 Hz
- Size: 59.4 x 29.5 x 54.4 mm (2.34 x 1.16 x 2.14 in)
