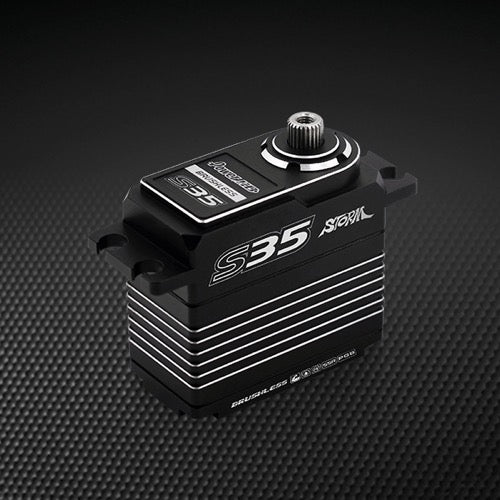

Power HD S35-S Standard Brushless Motor Titanium and Steel Gear Digital Servo Silver
Introducing the Power HD S35 Silver HV Brushless Digital Servo, a high-performance servo specifically designed for demanding RC applications. With impressive torque, rapid response time, and a rugged CNC-machined aluminum case, this servo delivers the power and reliability needed for various RC models.
Features
- High Torque: Delivering up to 35.0 kg-cm at 8.4V, this servo provides the necessary power for demanding RC applications.
- Fast Response Time: With a response time of 0.070 seconds at 8.4V, this servo ensures quick and precise movements.
- Robust Gearbox: The titanium and steel gearbox offers exceptional durability and reliability.
- Dual Ball Bearings: Two ball bearings ensure smooth and efficient servo movement.
- Brushless Motor: The brushless motor enhances efficiency and lifespan compared to traditional motors.
- CNC-Machined Aluminum Case: The sturdy aluminum housing provides added durability and protection.
- Wide Voltage Range: This servo operates with voltages from 6.0V to 8.4V, allowing for versatile applications.
- Compact Size: Despite its high performance, the servo remains compact and easy to install.
Specification
- Torque:
- At 6.0V: 26.0 kg-cm (361.1 oz/in)
- At 7.4V: 30.0 kg-cm (416.6 oz/in)
- At 8.4V: 35.0 kg-cm (486.1 oz/in)
- Speed:
- At 6.0V: 0.095 sec/60°
- At 7.4V: 0.075 sec/60°
- At 8.4V: 0.070 sec/60°
- Operating Voltage: 6.0 ~ 8.4 DC Volts
- Weight: 75.0 g (2.65 oz)
- Bearing Type: Dual ball bearings
- Motor Type: Brushless motor
- Gear Type: Titanium & steel
- Operating Temperature: -20~60°C
- Working Frequency: 1520µs / 333Hz
- Dimensions: 40.7 x 20.5 x 38.6 mm (1.60 x 0.81 x 1.52 in)
- Case Material: CNC-machined aluminum
The PowerHD S35 Silver HV CNC Brushless Digital Servo is the ideal choice for RC enthusiasts seeking a blend of high performance, rapid response, and robust construction. Perfectly suited for use in various RC models such as cars, airplanes, and more that require precise control and high power.
