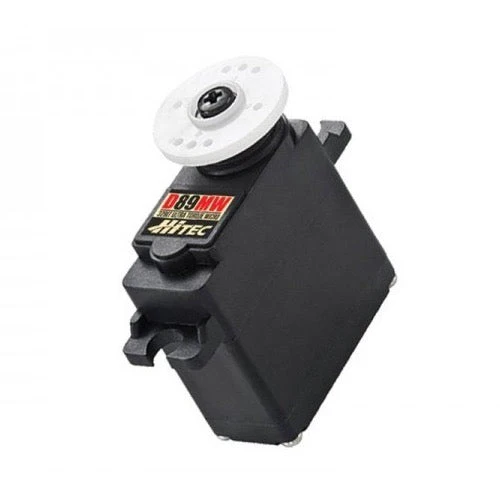

Hitec HRC36089 D89MW Digital Micro Ultra Torque Servo
With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this mini servo a standout in its class.
Specs
- Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
- Speed (Second @ 60°): 0.17 ~ 0.11
- Maximum Torque Range oz. / in.: 74 ~ 118
- Maximum Torque Range kg. / cm.: 5.3 ~ 8.5
- Current Draw at Idle: 30 mA
- No Load Operating Current Draw: 300 mA
- Stall Current Draw: 2,900 mA
- Dimensions (Inches): 1.14 x 0.51 x 1.18
- Dimensions (Metric): 29.0 x 13.0 x 30.0
- Weight (Ounces): 0.88
- Weight (Gram): 25
- Circuit Type: 32bit Programable Digital
- Motor Type: Coreless Metal Brush
- Gear Material: 5 Metal Gears
- Bearing Type: Dual Ball Bearing
- Output Shaft (type / Ømm): 25 / 6
- Case Material: Plastic
