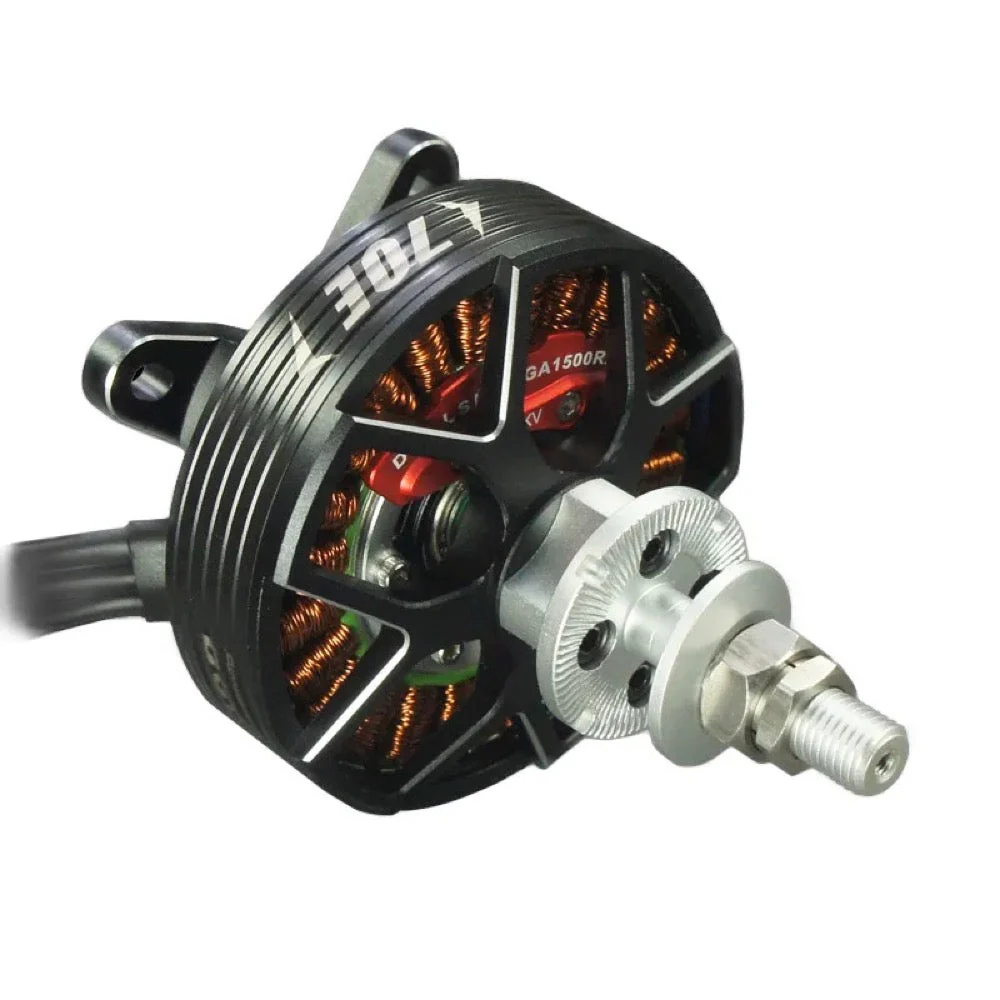

Dualsky DSXM52246 GA1500R.9 MKII Brushless Motor 15cc 545kv
The Dualsky GA1500R.9 MKII Racing Edition Giant Airplane Motor is designed for 70-80E class aircraft.
Specifications
- KV: 545
- Weight: 305g
- Dimensions (D x L): 69 x 58mm
- Length: 90mm
- Diameter of Shaft: 8mm (internal), 8mm (output)
- Spec. of Mounting Holes: 55 - 58
- Slots & Poles: 24, 28
- Io @ 10V: 2.35 A
- Ri (mOhm): 12.9
- No. of Cells: 18.5V - 22.2V, 5S - 6S LiPo
- Peak Power (15S): 2112 W
- Burst Current (15S) & Peak Torque: 88A, 1.93 N*M
- Cruising Power (8 mins): 850 W
