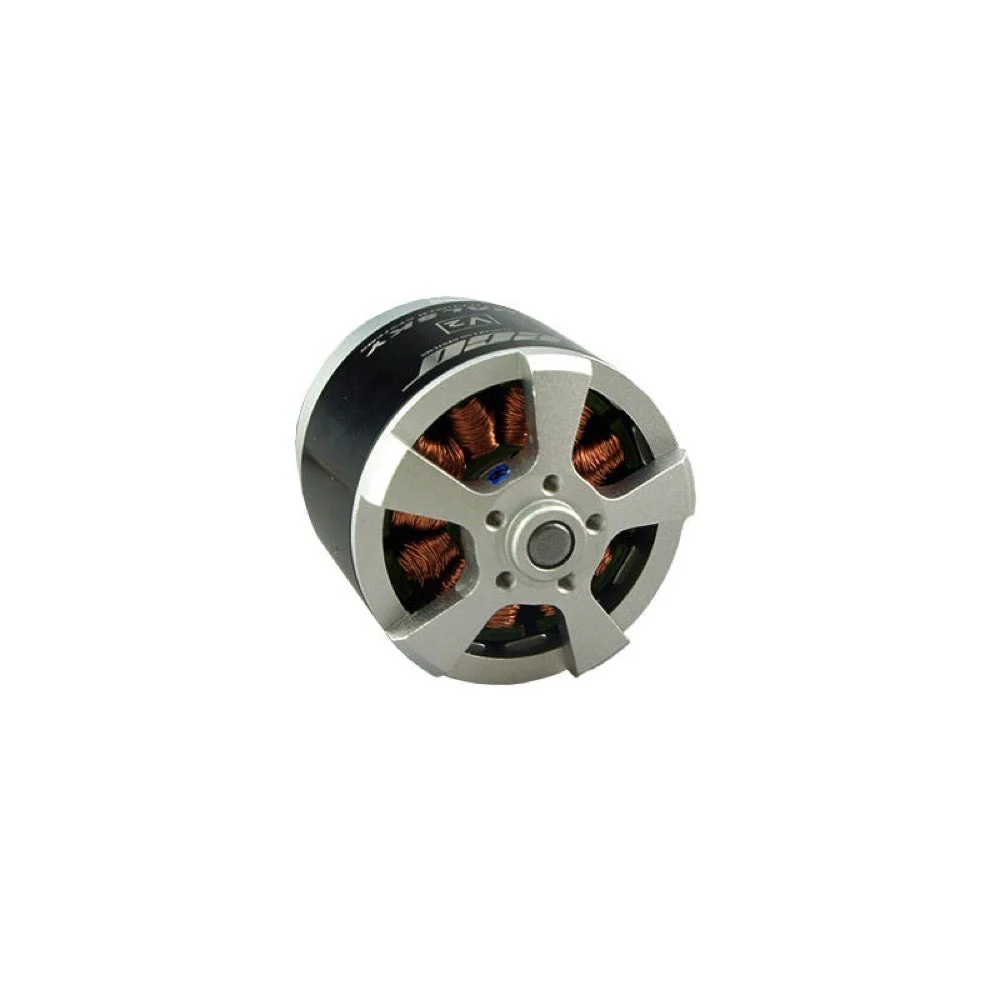

Dualsky DSXM51675 ECO 4120C 430kv Brushless Motor

Designed for use with 70E sport or performance planes, the Dualsky ECO 4120C 430kv Brushless Motor is powerful yet very light and a solid choice for your next build.

Features

• Classic Dualsky five-spokes back cover with simple lines
• Motor structure strength increased by 25%
• Optimised stress distribution and strength increased without increasing the weight
• High strength main shaft
• High temperature resistant, high toughness epoxy glue
• High precision double sides dynamic balancing
• Waterproof splash (ball bearing not waterproof)
• Rust-proof main shaft

Specification

• KV: 430
• Turns: 9
• Weight (g): 280
• Dimensions (D x L): 49.5x45.2
• Slots & Poles: 12N14P
• Ri (mOhm): 29.2
• Io @10V (A): 0.9
• No. of Cells (LiPo): 5 or 6
• Max. Efficiency Current [A]: 33
• Max. Burst Current (15S) [A]: 55
• Max. Power(15S) [W]: 1320
• Max. Torque [N*M]: 1.47
• Shaft Diameter (mm): 6
• Mounting Hole Pitch: 30/30
• Input Connectors: GC4.0
• Recommended ESC: XC-65-LITE or XC6018BA
• Propeller: 5S: 17x8E, 16x10E or 6S: 15x8E, 16x8E
• Class: 70E 3A & 3D Airplanes
