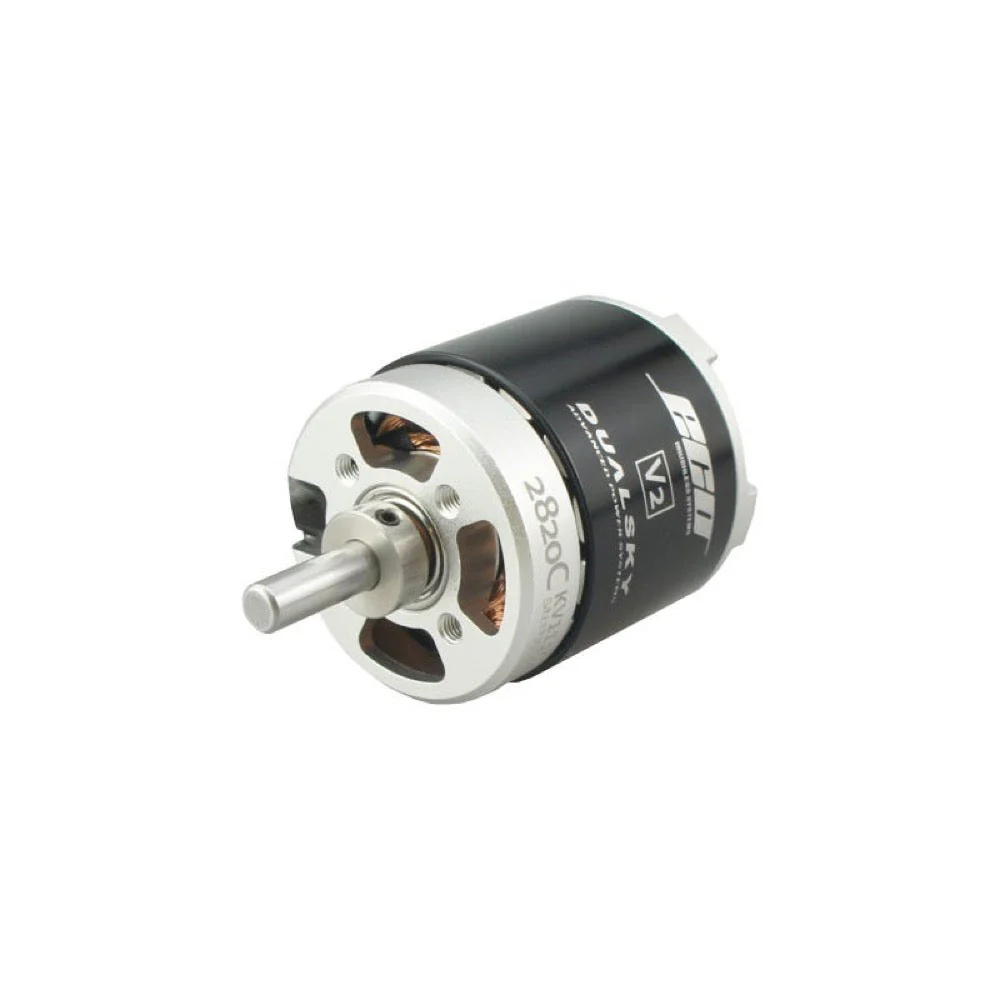

Dualsky DSXM51663 ECO 2820C 1120kv Brushless Motor

ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency and is waterproof.

Features

• Classic Dualsky five-spokes back cover with simple lines
• Motor structure strength increased by 25%
• Optimised stress distribution and strength increased without increasing the weight
• High strength main shaft
• High temperature resistant, high toughness epoxy glue
• High precision double sides dynamic balancing
• Waterproof splash (ball bearing not waterproof)
• Rust-proof main shaft

Specification

• KV: 1120
• Turns: .5
• Weight: 138g
• Dimensions: 35.2 x 40.2mm
• Slots & Poles: 12N14P
• Ri (mOhm): 25
• Io@10V: 1.8
• No. of cells: 2..3
• Max. Efficiency Current [A]: 28
• Max. Burst Current (15S) [A]: 45
• Max. Power (15S)[A]: 540
• Max. Torque [N*M]: 0.46
• Shaft diameter: 5mm
• Mounting holes pitch: 19/19
• Input Connectors: GC3.5
• Recommended ESC: XC-45-LITE or XC4018BA
• Propeller: 3S: 12x5E, 11x7E, 10x6E
• Class: .21-.30 Class
