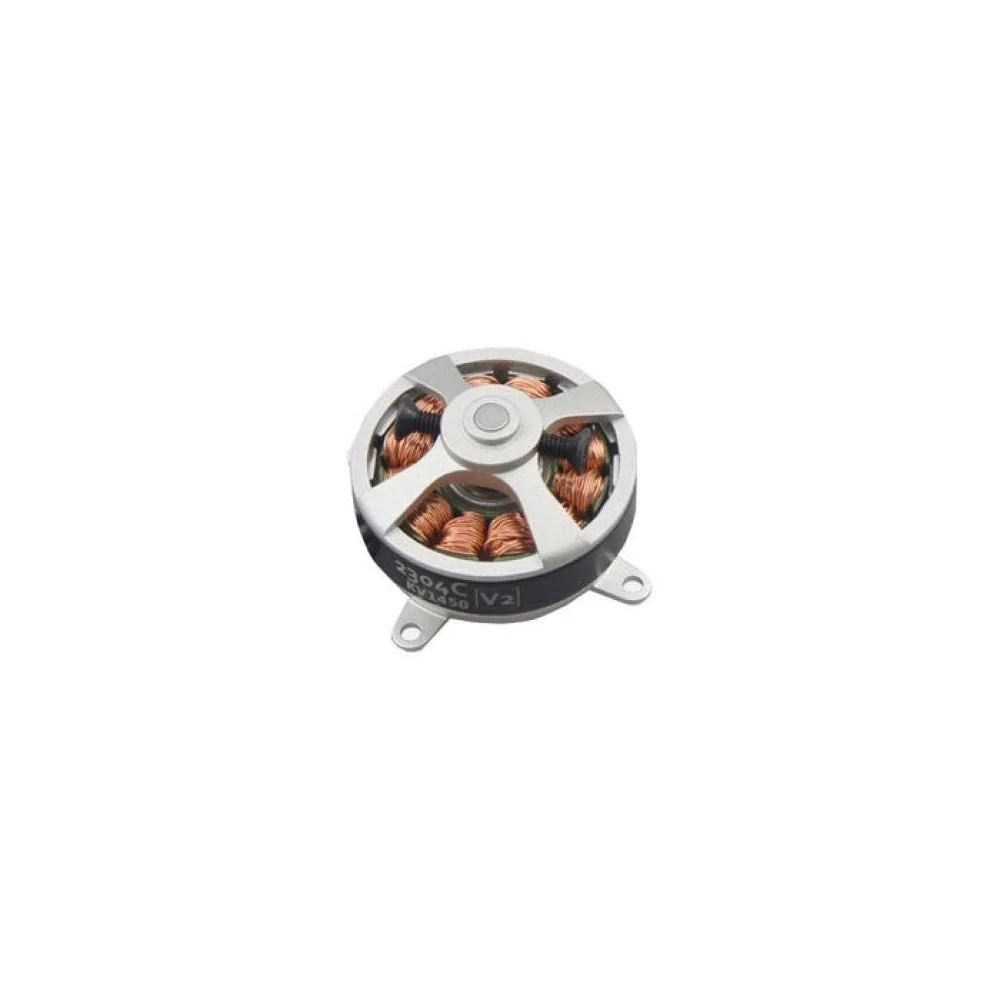

Dualsky DSXM51640 ECO 2304C 1450kv Brushless Motor

The 2304C ECO motor from Dualsky has 1450kv of power and is a great choice for indoor RC planes. This motor comes with propeller and motor mounts, in addition to gold plugs and screws.

Features

• Classic Dualsky five-spoke back cover
• Traditional Dualsky colour matching, anodized and matte finish
• Multi-surface rotating laser markings
• Motor structure strength increased by 25% over previous generations
• Optimised stress distribution
• Tough main shaft
• High precision
• Splashproof (please note, ball bearing is not waterproof)

Specification

• KV: 1450
• Turns: 23
• Weight: 23
• Dimensions: 28.5mm x 16.7mm
• Slots & Poles: 12N14P
• Ri (mOhm): 230
• Io @ 10V (A): 0.3
• No. of cells (LiPo): 2S, 3S LiPo
• Max Efficiency Current (A): 6
• Max. Burst Current (15S)[A]: 10
• Max. Power(15S)[W]: 120
• Max. Torque [N*M]: 0.079
• Shaft diameter(mm): 3.175
• Mountingholes pitch: 32
• Input Connectors: GC2.0
• Recommended ESC: XC-12 Lite or XC1210BA
• Propeller:
  • 2S: 8x4.7E, 9x4.7E
  • 3S: 7x4E, 8x4E
• Class: 100-200g airplane
