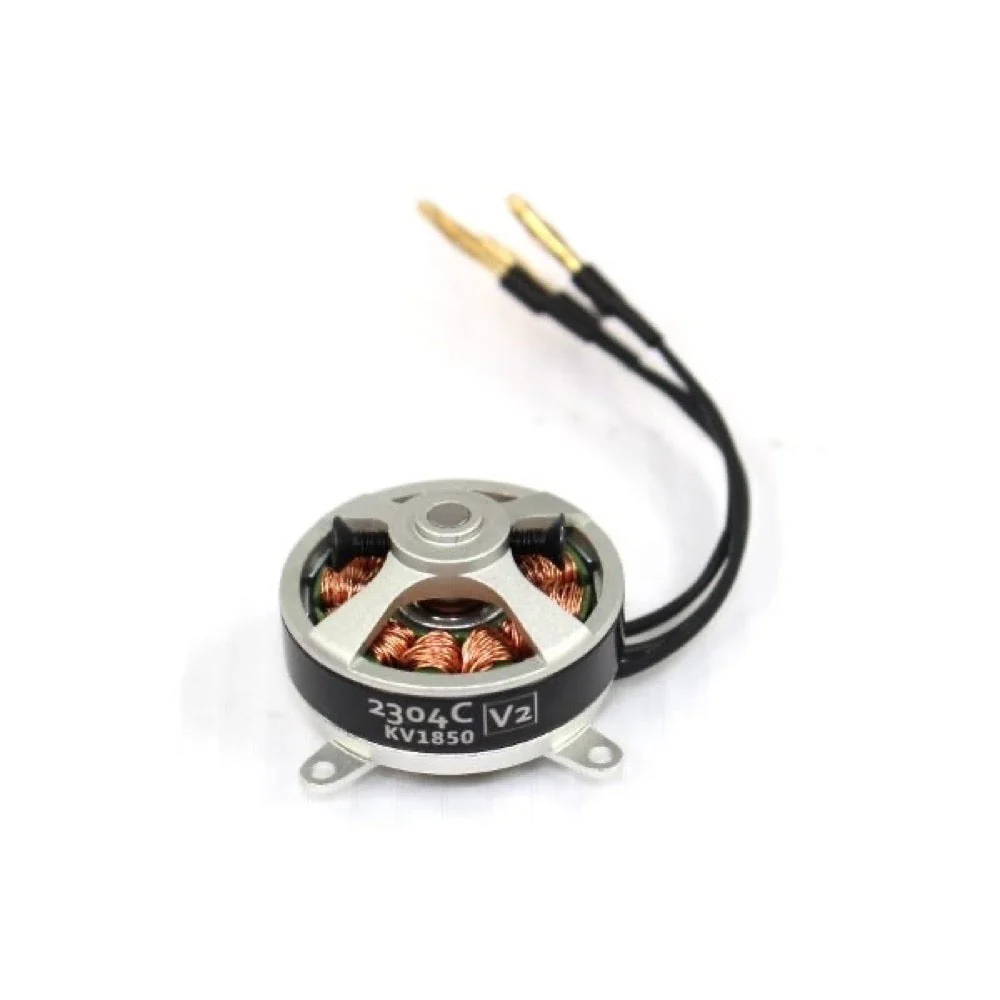

Dualsky DSXM51639 ECO 2304C 1850kv Brushless Motor

The 2304C ECO motor from Dualsky has 1850kv of power and is a great choice for indoor RC planes. This motor comes with propeller and motor mounts, in addition to gold plugs and screws.

Specification

• KV: 1850
• Turns: 18
• Weight: 23
• Dimensions: 28.5mm x 16.7mm
• Slots & Poles: 12N14P
• Ri (mOhm): 165
• Io @ 10V (A): 0.7
• No. of cells (LiPo): 43134
• Max Efficiency Current (A): 7.6
• Max. Burst Current (15S)[A]: 12
• Max. Power(15S)[W]: 96
• Max. Torque [N*M]: 0.074
• Shaft diameter(mm): 3.175
• Mountingholes pitch: 32
• Input Connectors: GC2.0
• Recommended ESC: XC-12-LITE or XC1210BA
• Propeller:
  • 2S: 9 x 4SF, PT10 x 2.8i
  • 3S: 5.1 x 4.5E, 6 x 3E
• Class: 100-200g airplane, e.g. indoor freestyle or EPP F3P trainer
