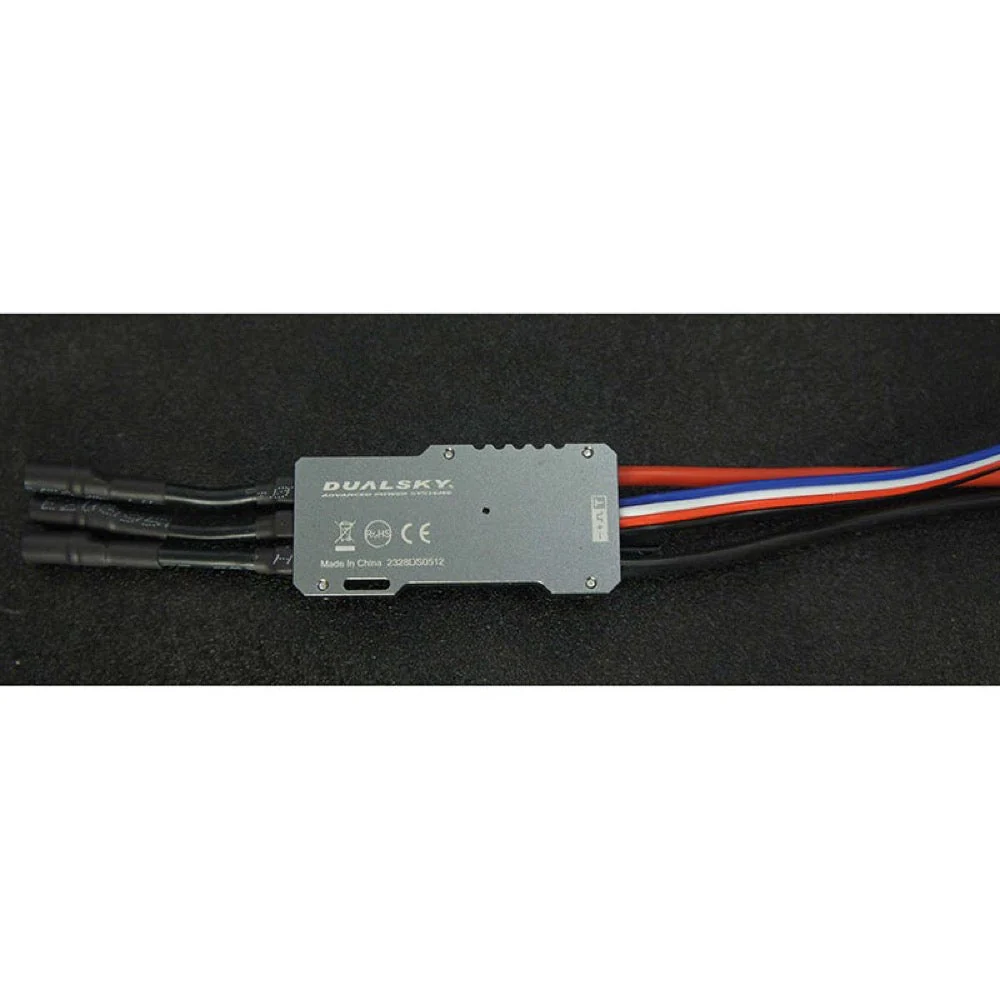

Dualsky DSB42257 Summit 60X-U6 60A Slim 6S Brushless ESC
Dualsky Summit 60X-U6 60A Slim 6S Brushless ESC is designed for superior functionality and performance, primarily in multi-rotors and runs on ARM 32bit MCUs.
Features
- Telemetry support including temperature, voltage, current and rotation speed
- Temperature protection
- Low RPM power protection
- Low Voltage protection
- Current protection
- PWM frequency
- Minimum throttle, maximum throttle and centre throttle
- S.BUS as input signal is supported
Specification
- Cells: 2-6 LiPo
- Duration current (A): 60
- Weight (g): 40.6 g
- BEC: 6V/5A (10A kurz)
- Length (mm): 49 mm
- Type: Brushless
- Wide (mm): 23 mm
- Height (mm): 7.2mm
- BEC or OPTO: BEC
- Direction of rotation: Normal
- Motor timing: Auto
- Throttle stick min. 1040
- Throttle stick max. 1960
- Undervoltage shutdown: 3V
- Brake on stop: 80%, activated
- PWM frequency: 24kHz
