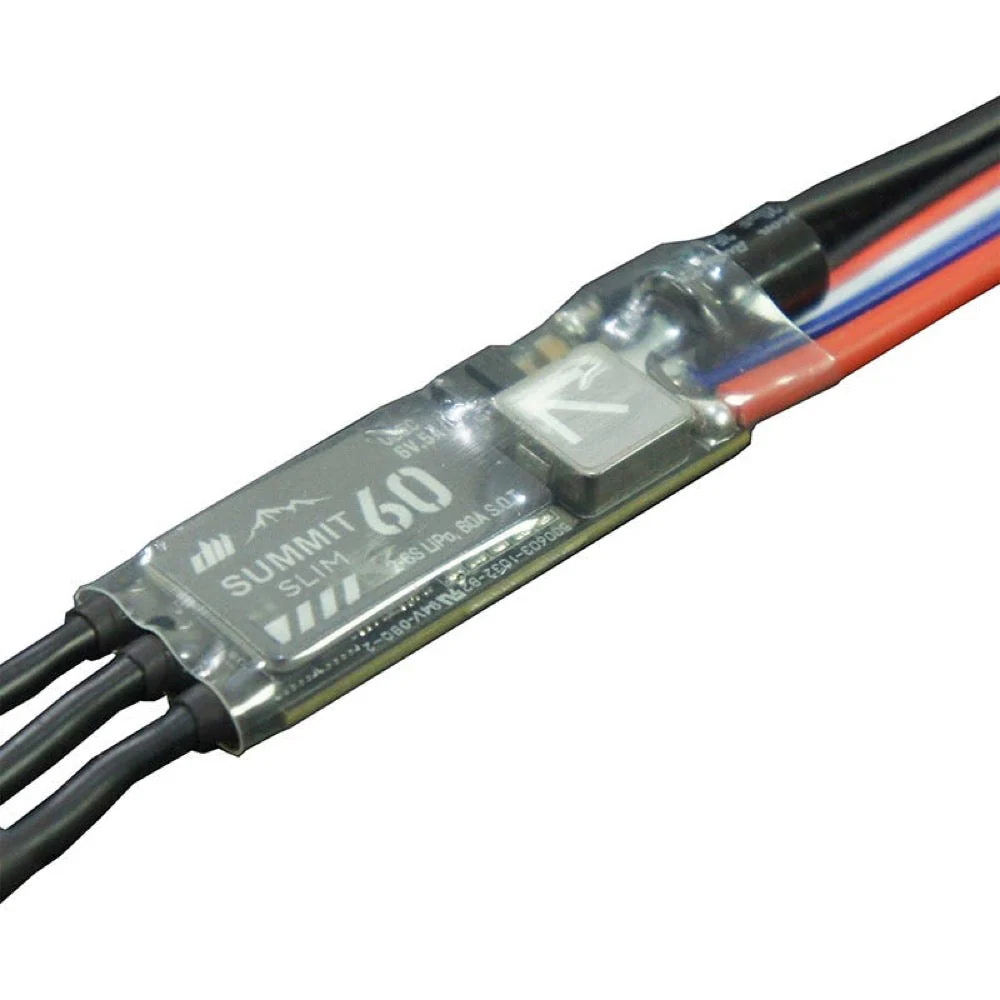

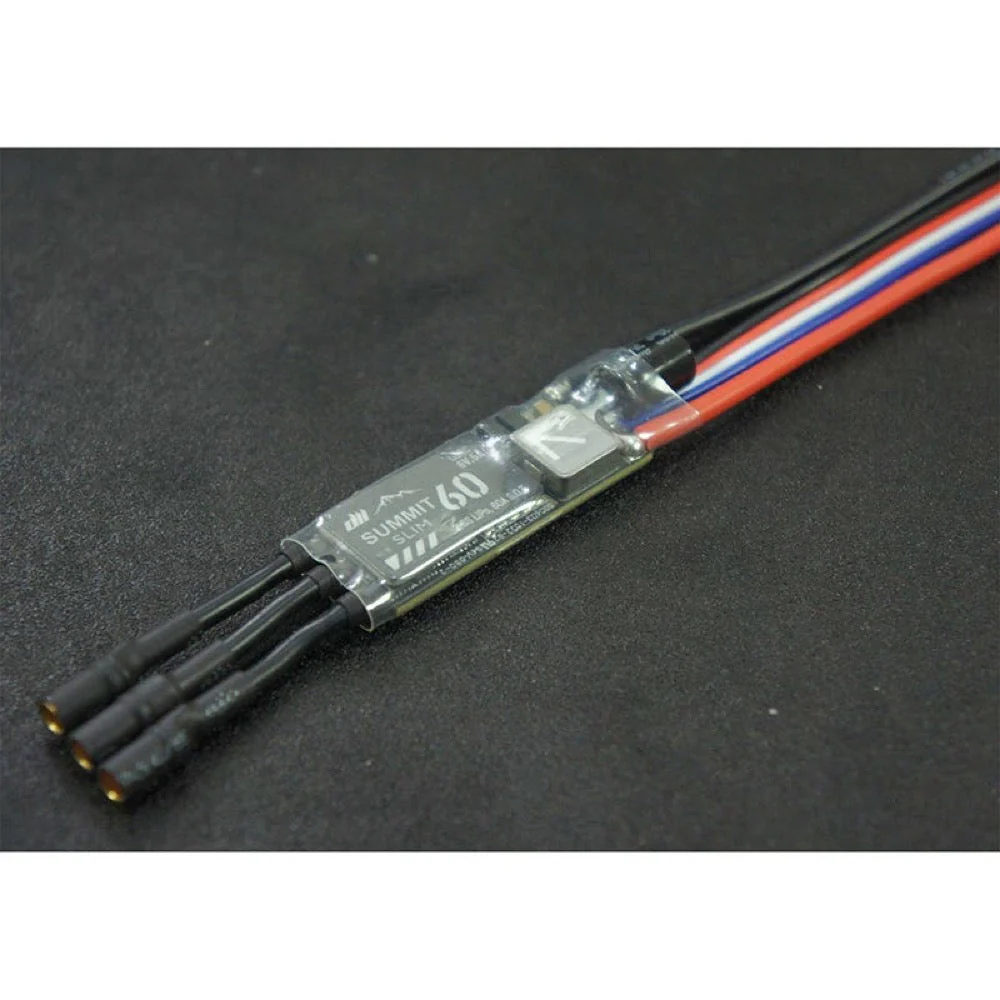

Dualsky DSB42256 Summit 60A Slim 6S Brushless ESC

The Dualsky Summit 60A Slim 6S Brushless ESC is designed for superior functionality, performance and efficiency, primarily in F5J and similar electric powered gliders.

This is a lightweight (31gm w/wires and XT60 connector) compact ESC that uses BLHeliSuite -S/32 software. The 6V BEC is rated at a continuous 5A with 10A peak.

With the use of a BLHeliSuite USB adaptor (not included) and a PC that has BLHeliSuite32_32.9.0.5 software loaded, the user can change a number of parameters including:

• Motor Direction
• Motor Timing
• Min and Max throttle settings
• Low Voltage Protection levels
• Brake on Stop, On or Off and brake strength
• Temperature protection
• Rampup power
• S.BUS operation
• telemetry data is available and can be configured for some radios

The default settings that the Dualsky Summit 60A Slim 6S Brushless ESC is supplied with are perfect for use in an electric glider. The maximum recommended run time at full power is 40 seconds.

Features

• Temperature protection
• Low RPM power protection
• Low Voltage protection
• Current protection
• PWM frequency
• Minimum throttle, maximum throttle and centre throttle
• S.BUS as input signal is supported

Specification

• Dimensions: 55 x 17 x 9 mm
• Weight (including wires and XT60 connector): 33 g
• Cells: 2-6 LiPo
• Duration current (A): 60
• BEC: 6V/5A (10A kurz)
• Type: Brushless
• BEC or OPTO: BEC
• Direction of rotation: Normal
• Motor timing: Auto
• Throttle stick min. 1040
• Throttle stick max. 1960
• Undervoltage shutdown: 3V
• Brake on stop: 80%, activated
• PWM frequency: 24kHz
